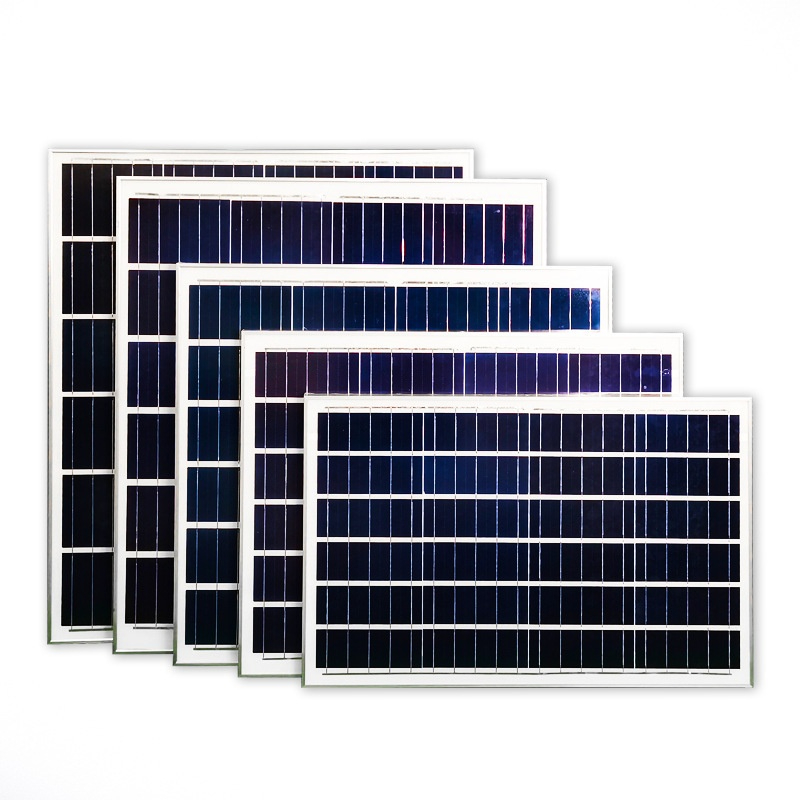

6V Solar Glass Panel 6-70W

Home » Products » Solar Panels » 6V Solar Glass Panel 6-70W

6V Solar Glass Panel 6-70W

Availability:



Inquire

Product Description

Model

Parameter Description

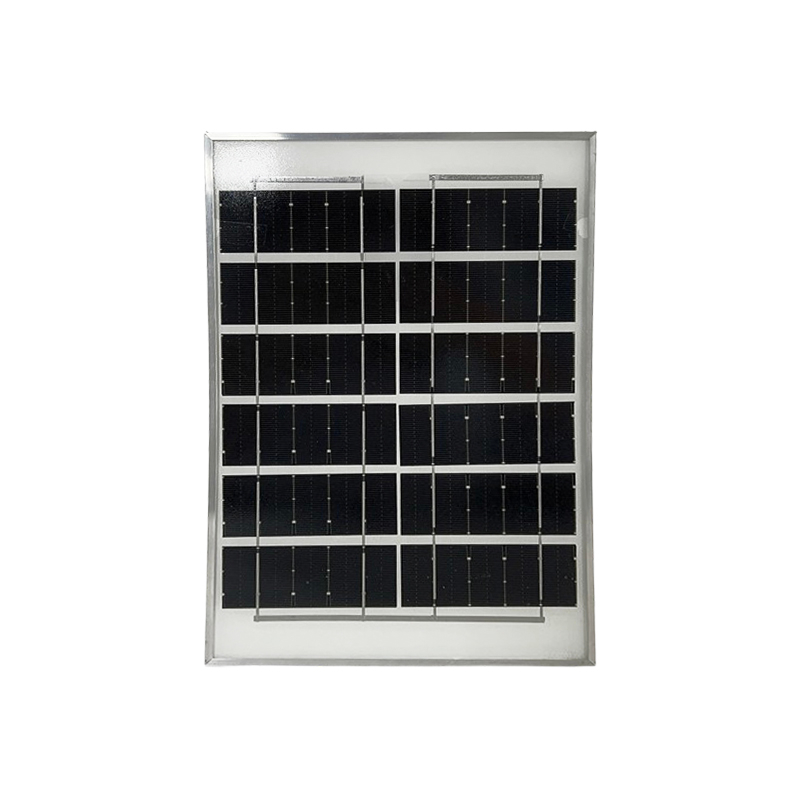

6V 6W-270×180mm

LF6W

Specifications: 6V 6W-270×180mm

Peak power Pmax: 6Wp

Working voltage Vmp: 6V

Working current Imp: 1A

Open circuit voltage Voc: 7.2V

Short circuit current Isc: 1.08A

Conversion rate: 23%

Reference net weight: 0.31KG

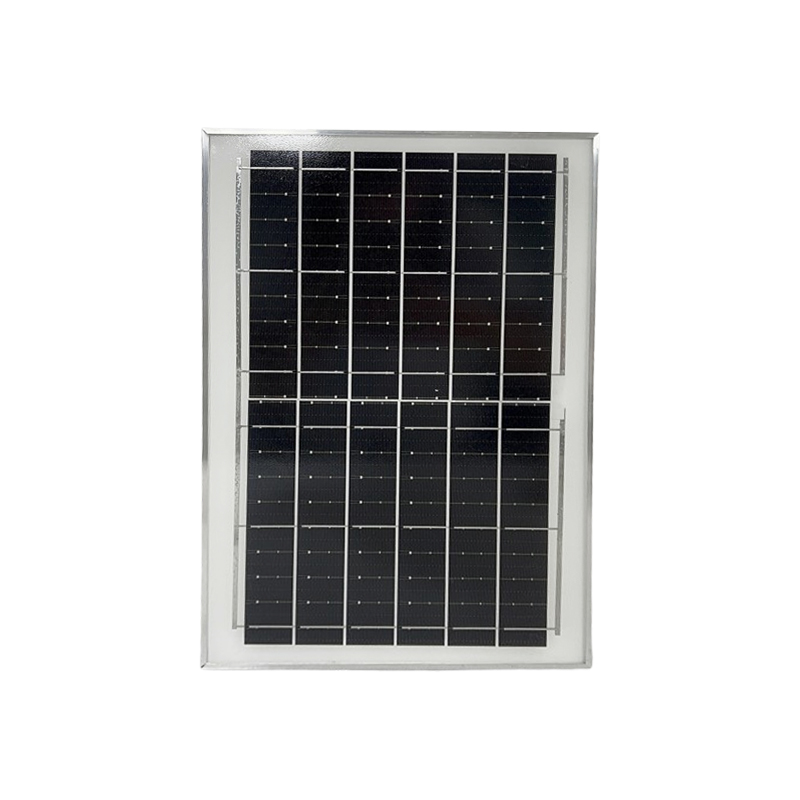

6V 10W-230×350

LF10W

Specifications: 6V 10W-230*350mm

Peak power Pmax: 10Wp

Working voltage Vmp: 6V

Working current Imp: 1.66A

Open circuit voltage Voc: 7.2V

Short circuit current Isc: 1.8A

Conversion rate: 23%

Reference net weight: 0.51KG

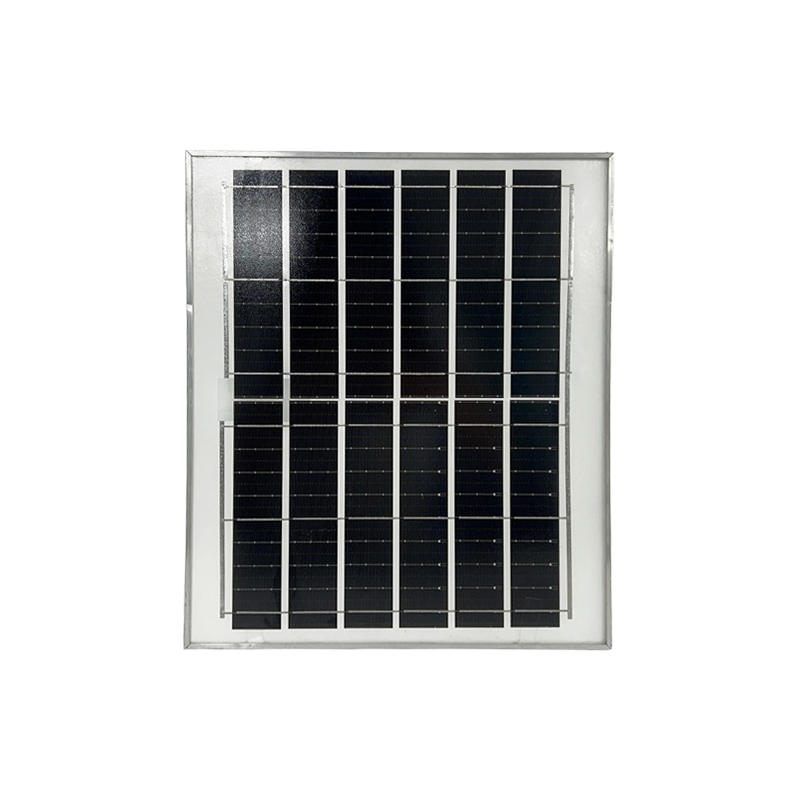

6V 12W-350×290mm

LF12W

Specifications: 6V 12W-350×290

Peak power Pmax: 12Wp

Working voltage Vmp: 6V

Working current Imp: 2A

Open circuit voltage Voc: 7.2V

Short circuit current Isc: 2.16A

Conversion rate: 23%

Reference net weight: 0.62KG

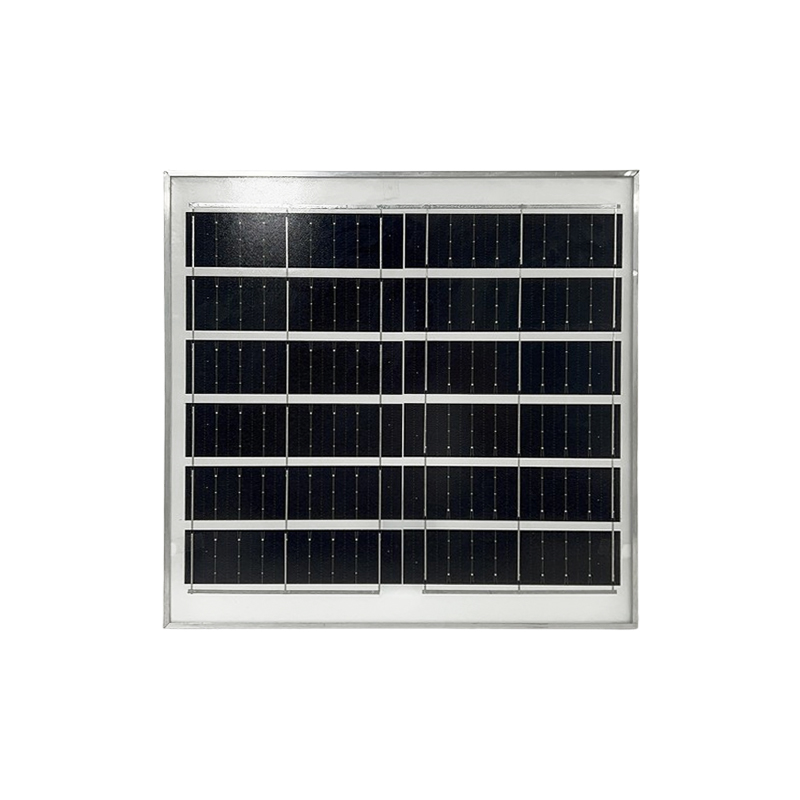

6V 15W-350×350mm

LF15W

Specifications: 6V 15W-350×350mm

Peak power Pmax: 15Wp

Working voltage Vmp: 6V

Working current Imp: 2.5A

Open circuit voltage Voc: 7.2V

Short circuit current Isc: 2.7A

Conversion rate: 23%

Reference net weight: 0.79KG

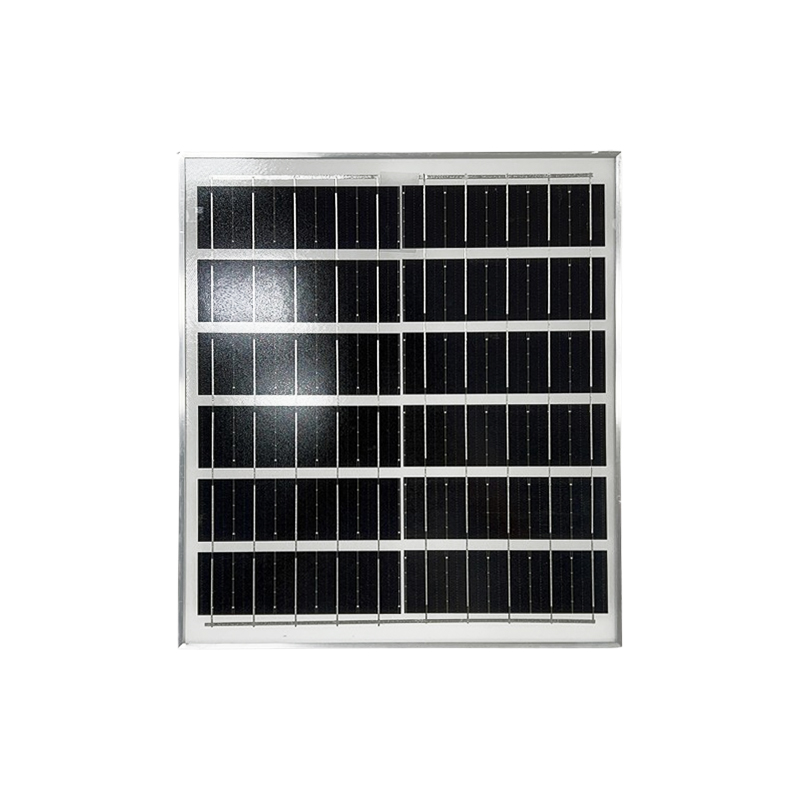

6V 18W 350×400mm

LF18W

Specifications: 6V 18W 400×350mm

Peak power Pmax: 18Wp

Operating voltage Vmp: 6V

Operating current Imp: 3A

Open circuit voltage Voc: 7.2V

Short circuit current Isc: 3.24A

Conversion rate: 23%

Reference net weight: 0.91KG

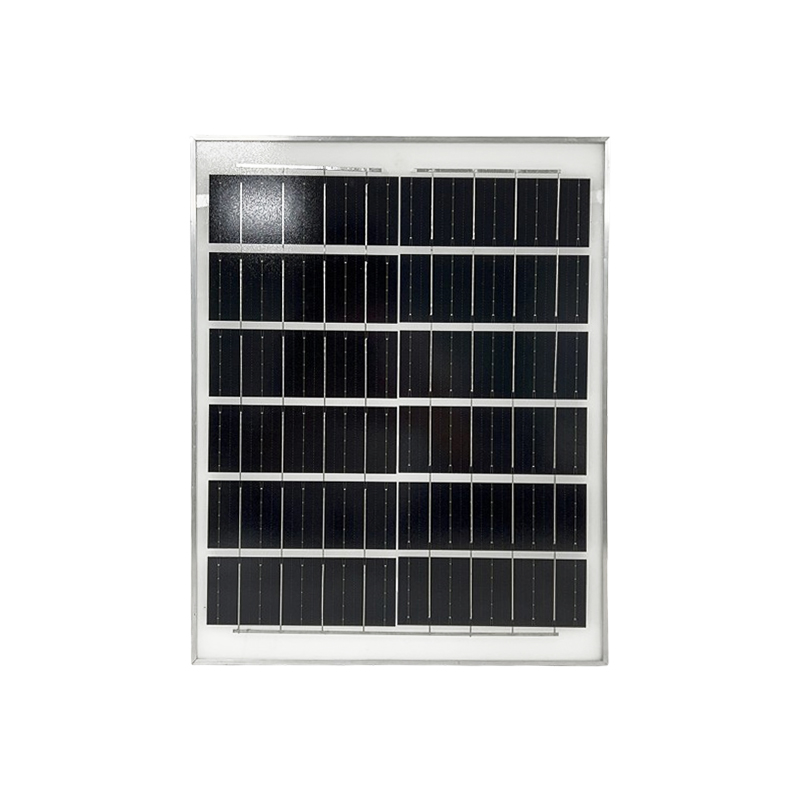

6V 20W-350×450mm

LF20W

Specifications: 6V 20W-450×350mm

Peak power Pmax: 20Wp

Working voltage Vmp: 6V

Working current Imp: 3.33A

Open circuit voltage Voc: 7.2V

Short circuit current Isc: 3.6A

Conversion rate: 23%

Reference net weight: 0.95KG

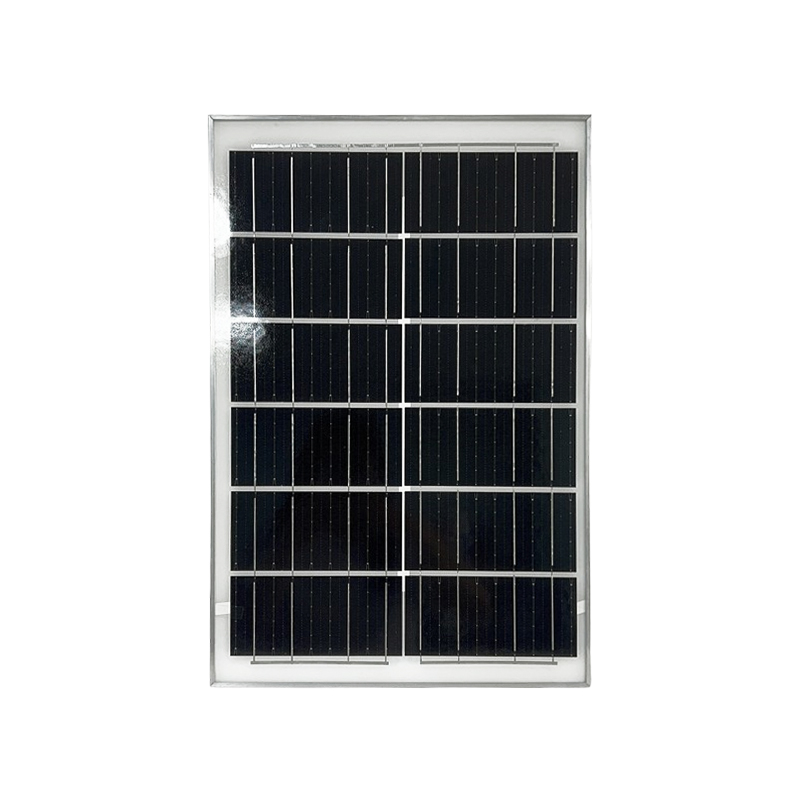

6V 25W-350×530mm

LF25W

Specifications: 6V 25W-350×530mm

Peak power Pmax: 25Wp

Working voltage Vmp: 6V

Working current Imp: 4.16A

Open circuit voltage Voc: 7.2V

Short circuit current Isc: 4.5A

Conversion rate: 23%

Reference net weight: 1.17KG

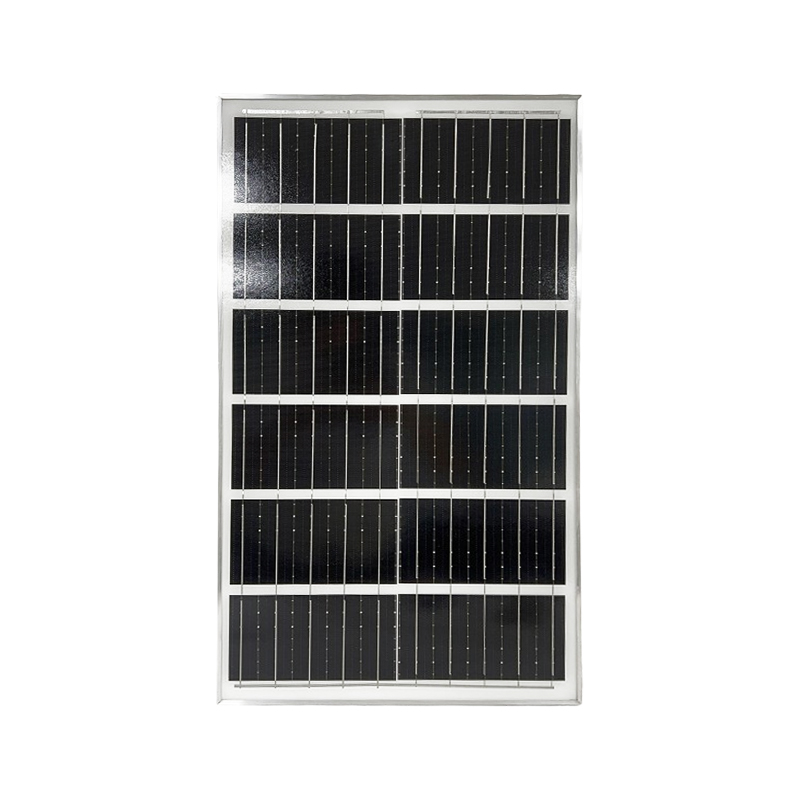

6V 30W-350×600mm

LF30W

Specifications: 6V 30W-350×600mm

Peak power Pmax: 30Wp

Working voltage Vmp: 6V

Working current Imp: 5A

Open circuit voltage Voc: 7.2V

Short circuit current Isc: 5.4A

Conversion rate: 23%

Reference net weight: 1.29KG

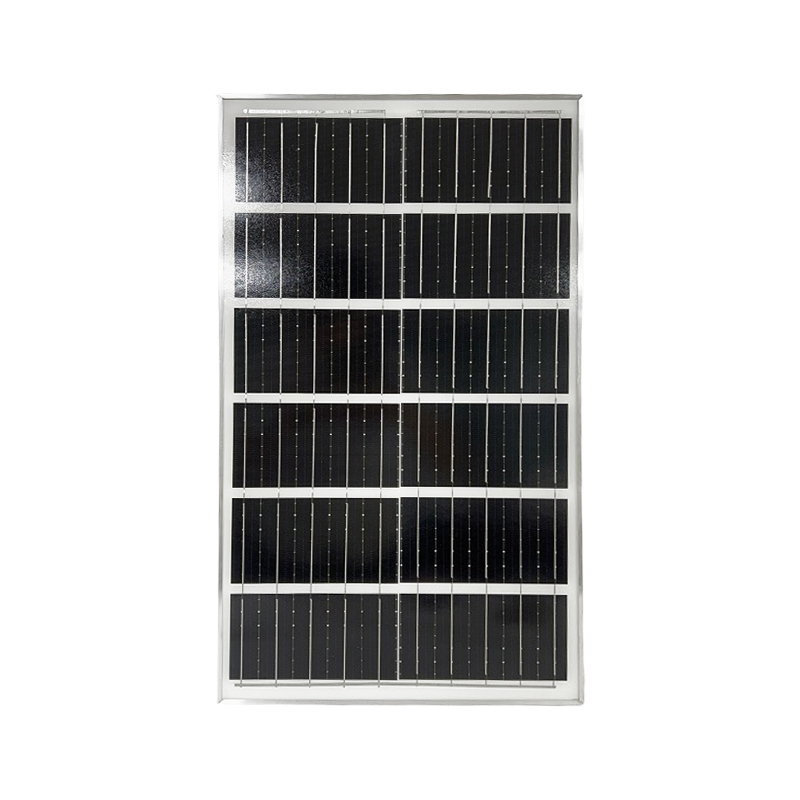

6V 35W-350×700

LF35W

Specifications: 6V 35W-700×350

Peak power Pmax: 35Wp

Working voltage Vmp: 6V

Working current Imp: 5.8A

Open circuit voltage Voc: 7.2V

Short circuit current Isc: 6.3A

Conversion rate: 23%

Reference net weight: 1.5KG

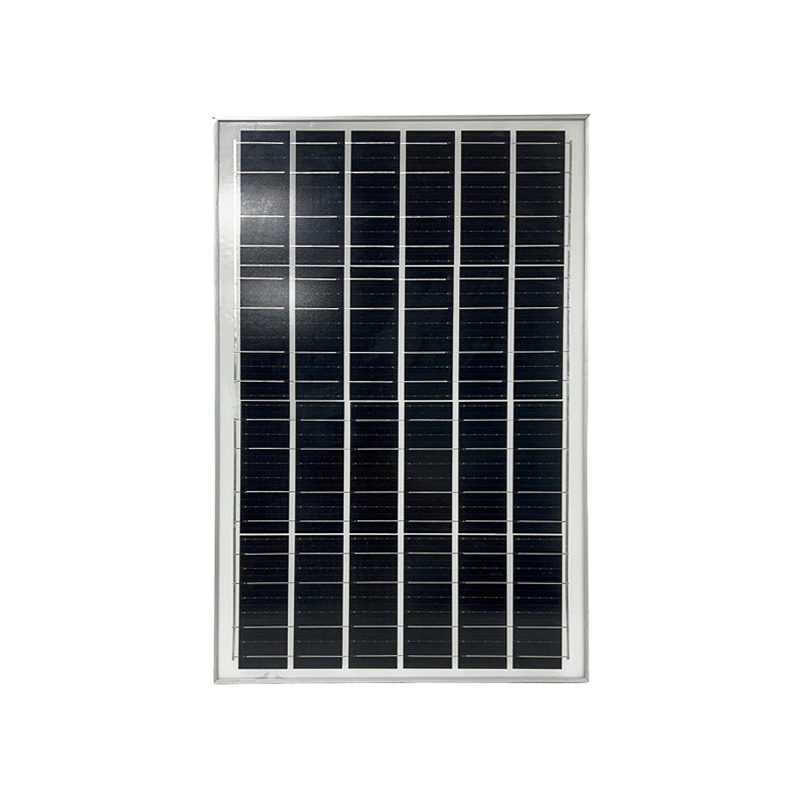

6V 40W-670×445mm

LF40W

Specifications: 6V 40W-670*445

Peak power Pmax: 40Wp

Working voltage Vmp: 6V

Working current Imp: 6.66A

Open circuit voltage Voc: 7.2V

Short circuit current Isc: 7.2A

Conversion rate: 23%

Reference net weight: 2.55KG

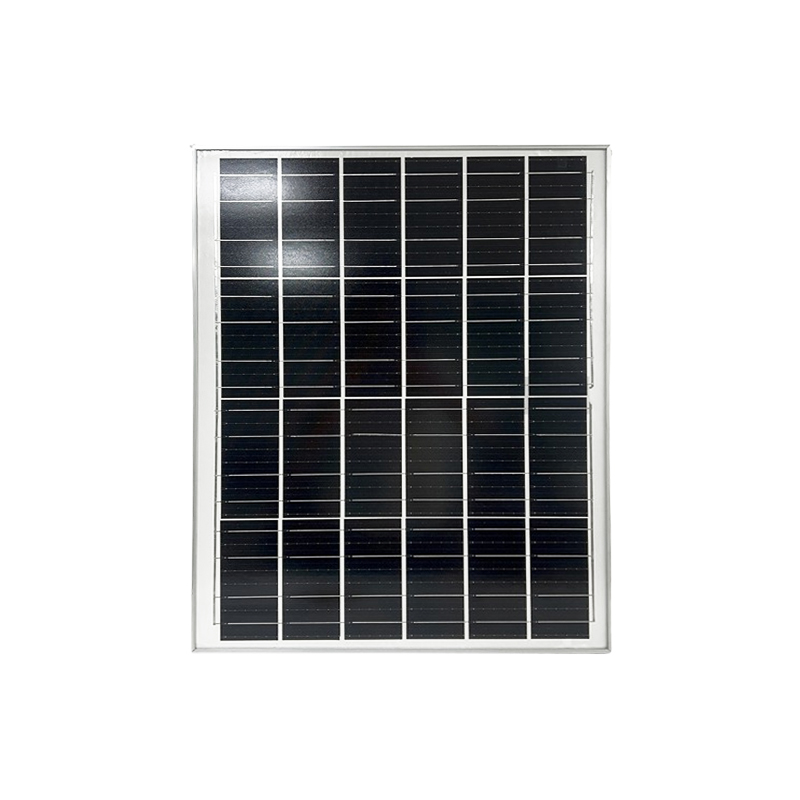

6V 50W-670×535mm

LF50W

Specifications: 6V 50W-670×535mm

Peak power Pmax: 50Wp

Operating voltage Vmp: 6V

Operating current Imp: 8.33A

Open circuit voltage Voc: 7.2V

Short circuit current Isc: 9A

Conversion rate: 23%

Reference net weight: 3KG

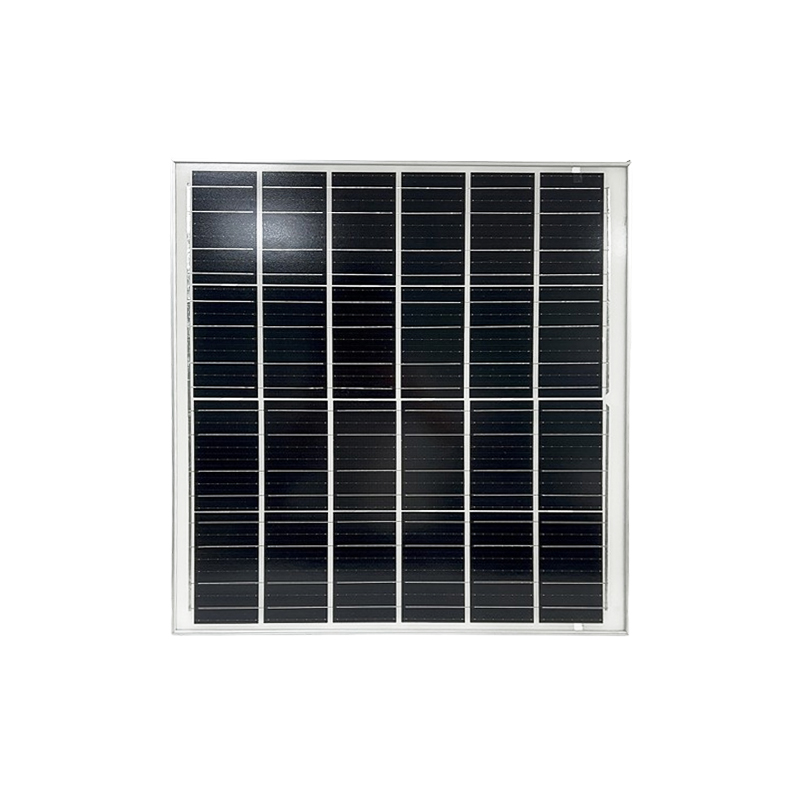

6V 60W-670×630mm

LF60W

Specifications: 6V 60W-670×630mm

Peak power Pmax: 60Wp

Working voltage Vmp: 6V

Working current Imp: 10A

Open circuit voltage Voc: 7.2V

Short circuit current Isc: 10.08A

Conversion rate: 23%

Reference net weight: 3.59KG

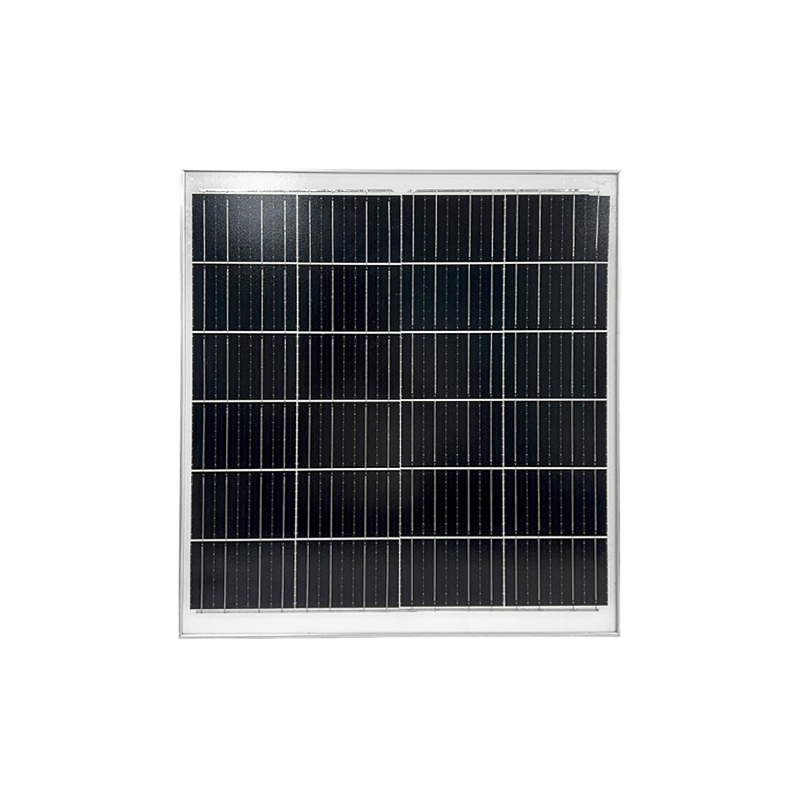

6V 70W-670×720mm

LF70W

Specifications: 6V 70W-670×720mm

Peak power Pmax: 70Wp

Working voltage Vmp: 6V

Working current Imp: 11.66A

Open circuit voltage Voc: 7.2V

Short circuit current Isc: 12.6A

Conversion rate: 23%

Reference net weight: 4.44KG

Solar Glass Panel (1)

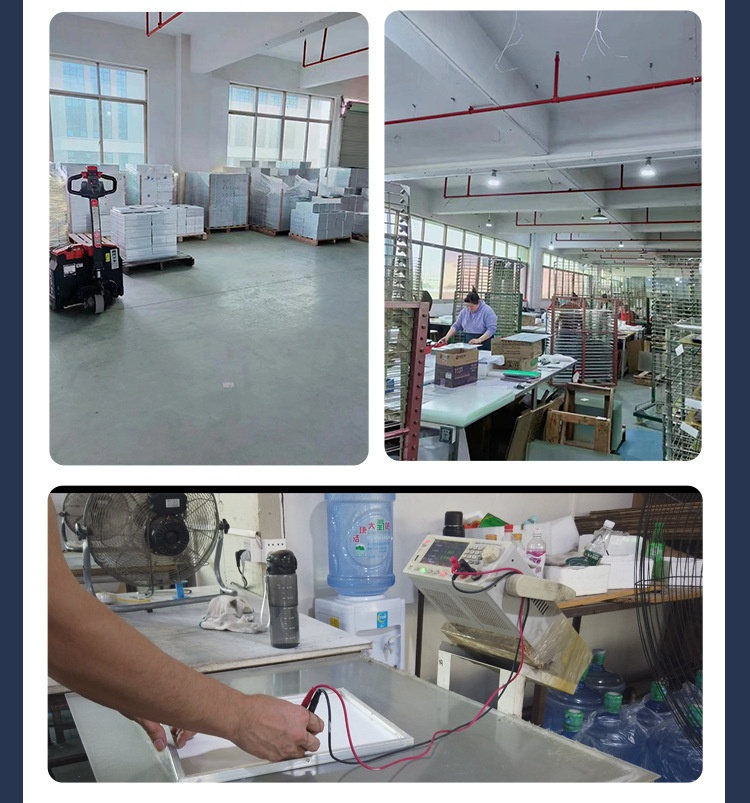

Solar Glass Panel (2)

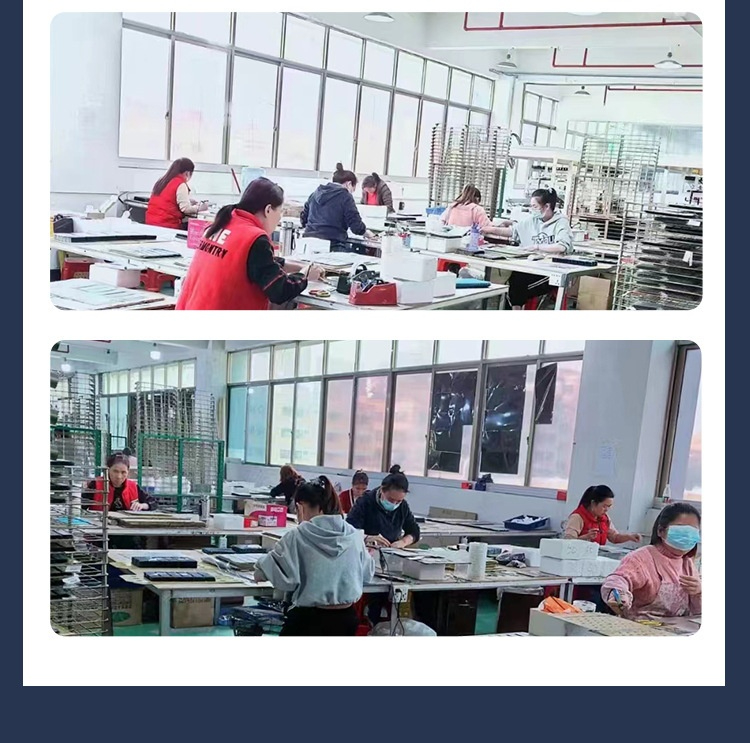

Solar Glass Panel (3)

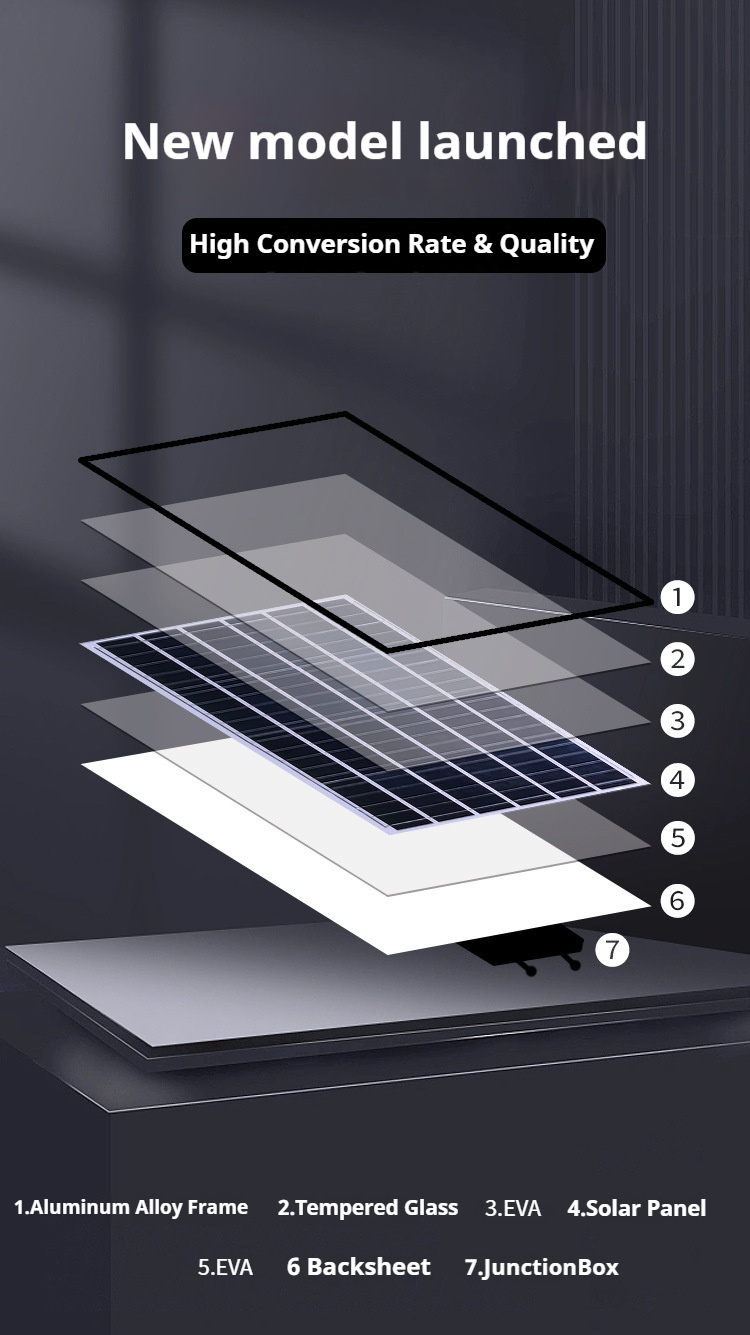

Solar Glass Panel (4)

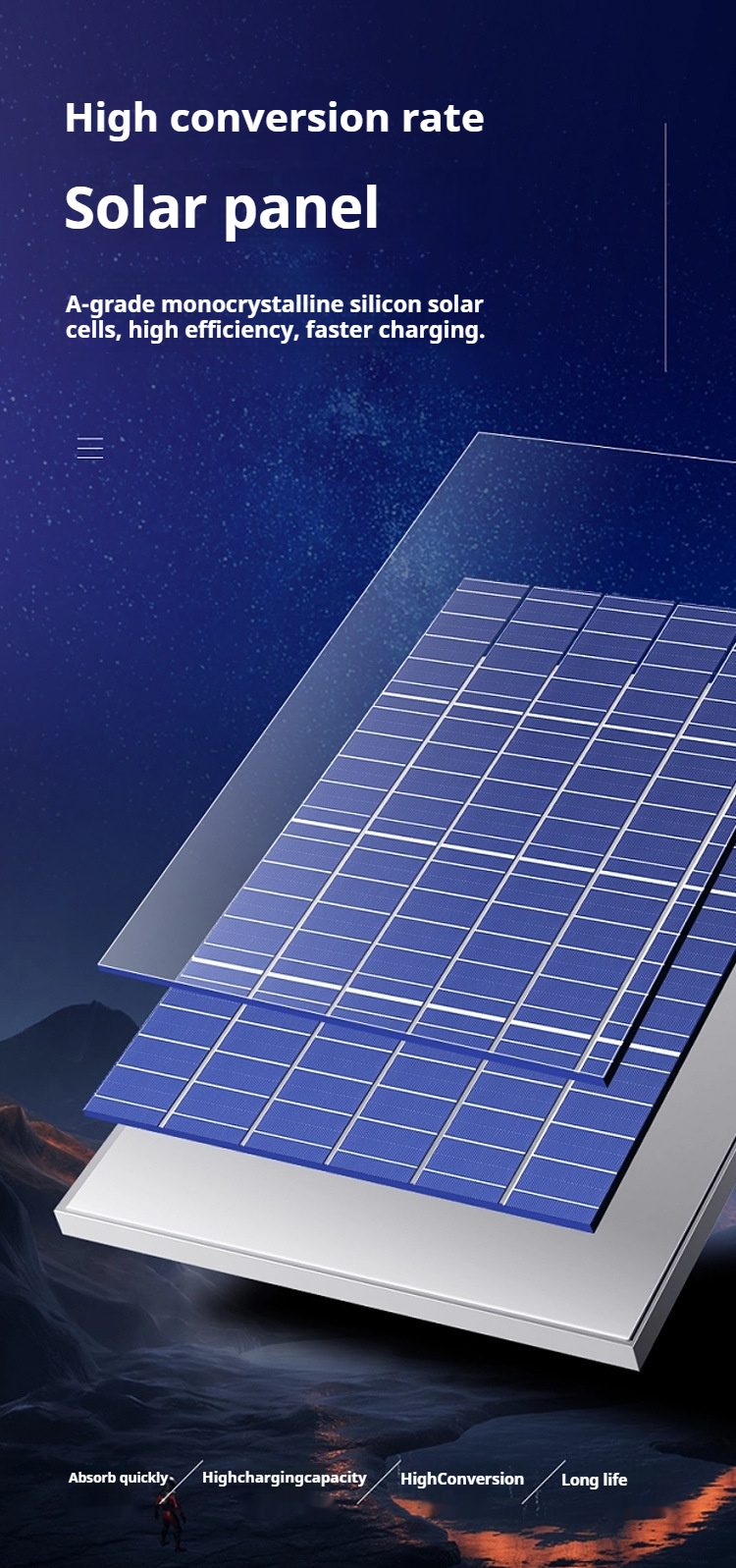

Solar Glass Panel (5)

Solar Glass Panel (6)

Solar Glass Panel (7)

Solar Glass Panel (8)

Solar Glass Panel (9)

Solar Glass Panel (10)

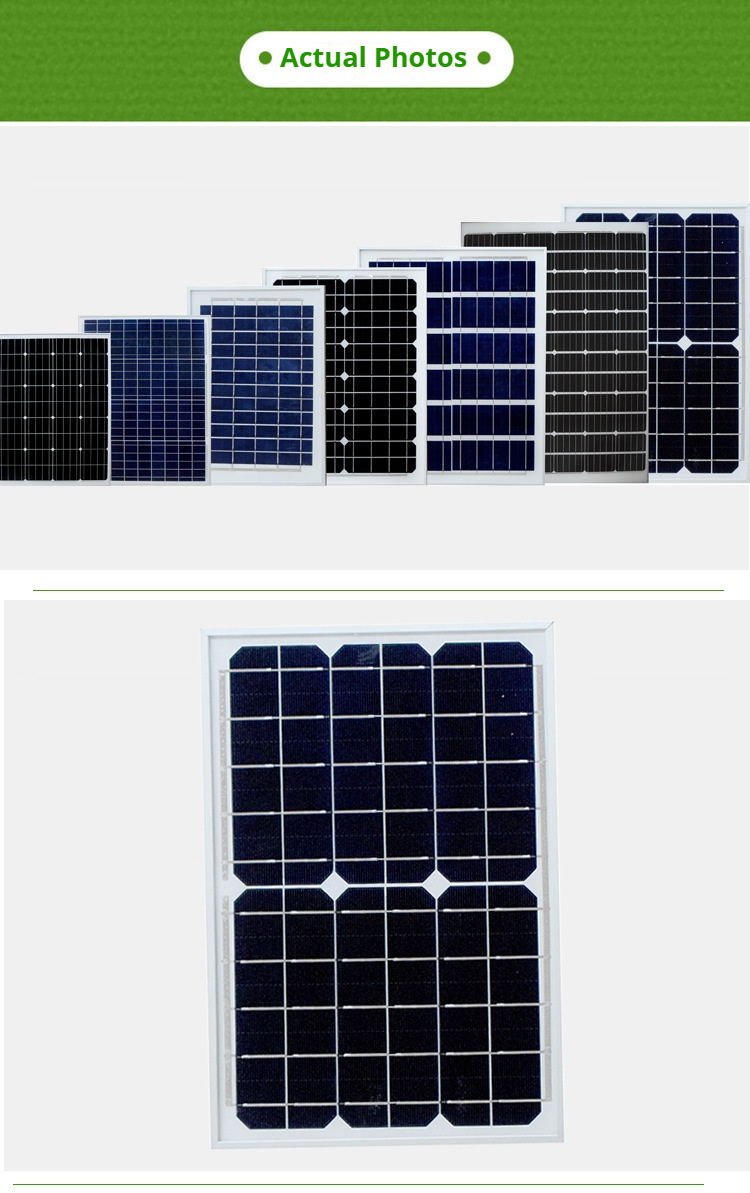

Solar Glass Panel (11)

High quality Solar panels Solar panels price Supply Solar panels

Related Products

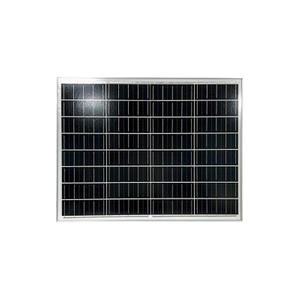

18V Solar Glass Panel 50W-200W

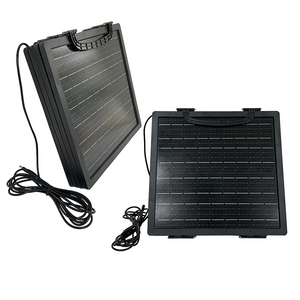

Folding Solar Panels 20W-180W

Company Introduction

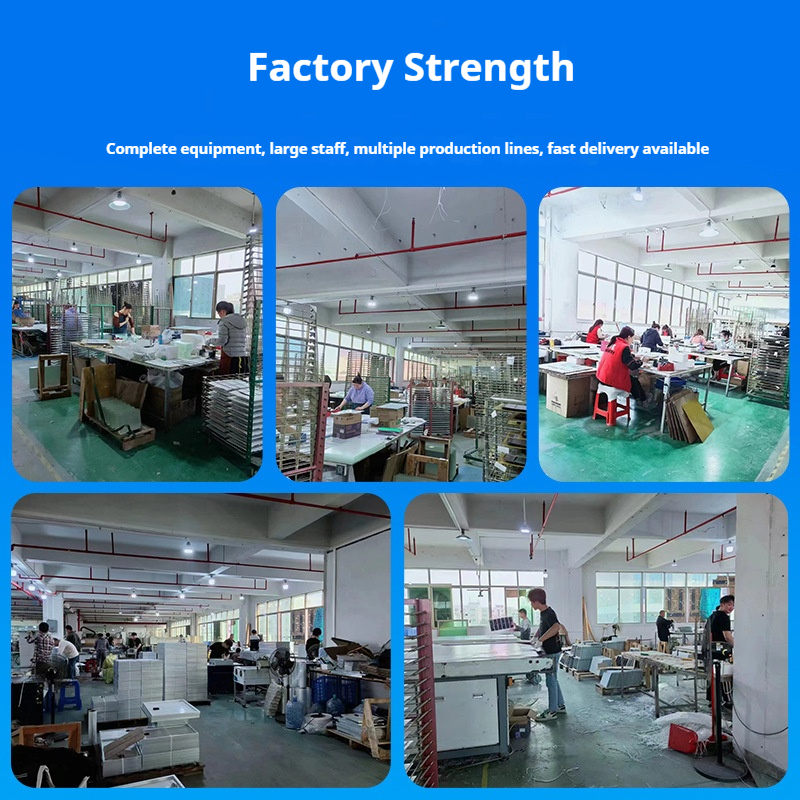

Zhongshan Bensheng New Energy Technology Factory is a technology company focusing on the research and development of mobile energy storage. The company has solid strength: it has a production base covering an area of about 8,000 square meters, more than 120 professionals, equipped with more than 5 production lines and more than 10 advanced equipment; relying on a strong R&D team, it has built an integrated service system from solution design, R&D, production to sales and after-sales, and responds to needs efficiently throughout the entire process.
